48V Lithium Golf Cart Battery –
PRO-Li Core 105Ah Battery Package for ECAR IKON

Designed to seamlessly integrate into any existing ECAR IKON (2 Seat) golf carts, the PRO-Li Core 105Ah Battery Package is suitable for both personal and commercial use in low-medium demand environments. With this Core package specifically designed to match the demands of ECAR’s you will be able to complete any golf game or task without worrying about reliability. This package promises approximately 2-3 rounds of golf (or 4-6 hours of use) per charge.

Using only A-grade lithium cells you can expect up to a 10-year lifespan in ideal conditions. (This equates to up to 3500 charge cycles.) You will comfortably be able to charge your cart once a day for 365 days of the year and not be convinced you are reducing this lifespan.

Checking your 48V Lithium Golf Cart Battery – PRO-Li Core 105Ah Battery Package for ECAR IKON can also be done with ease thanks to ECAR Golf’s very own iOS and Android mobile application (launching soon). All ECAR Golf PRO-Li batteries are Bluetooth LOW-E enabled so you can easily check your cell health and battery vitals.

Our matched RCM-certified onboard lithium charger is directly connected to the Lithium battery BMS to provide pre and post-charge cycle safety checks. When the charging cord is plugged in and powered on, the charger will complete the first of these checks, begin charging until the optimal energy level is obtained in the cells and automatically turns itself off. Your battery will not continue charging, even with the power turned on, it is sitting in standby only.

Due to the direct BMS connection, the PRO-Li Core 105Ah Battery Package for ECAR IKON also has a vacation mode. This will only ever be engaged if your PRO-Li battery system in the cart is turned off and dormant for several weeks at a time. The battery BMS is monitoring the cells 24/7, 365 days of the year. When the system detects the cells have depleted below a set voltage, it will send a wake-up signal to the charger to commence a pre-charge safety check and then a charge cycle. This feature is unique to ECAR Golf  PRO-Li batteries and even when your cart is not in use, your battery is maintaining its health.

Why choose this 48V Lithium Golf Cart Battery – PRO-Li Core 105Ah Battery Package for ECAR IKON:

• Ideally weighted for good cart balance and handling.
• Maintenance-free – No cleaning battery acid, no damaged flooring. Simply keep the box dust-free.
• Long life – up to 3500 Charge cycles in ideal conditions (25oC, >30% SOC).
• Specifically matched to for 48V ECAR IKON Golf Carts to ensure optimal reliability.
• Onboard safe charging – zero risk of fire or explosion with our matched charging system.
• Golf Course & Workplace compliant – ECAR Golf can provide letters of manufacturer approval for compliance.
• Fully Certified & Tested under IEC 62619:2022, UL1642 for guaranteed safety and UN38.4 & UN3480 for safe transport.
• Bluetooth-enabled iOS & Android mobile application (coming soon) for more thorough checking of the battery vitals. Approved technicians will also have level 2 access deeper into the BMS to assist in identifying any problems that arise over the life of the battery or if we release any new features in the next 10 years.

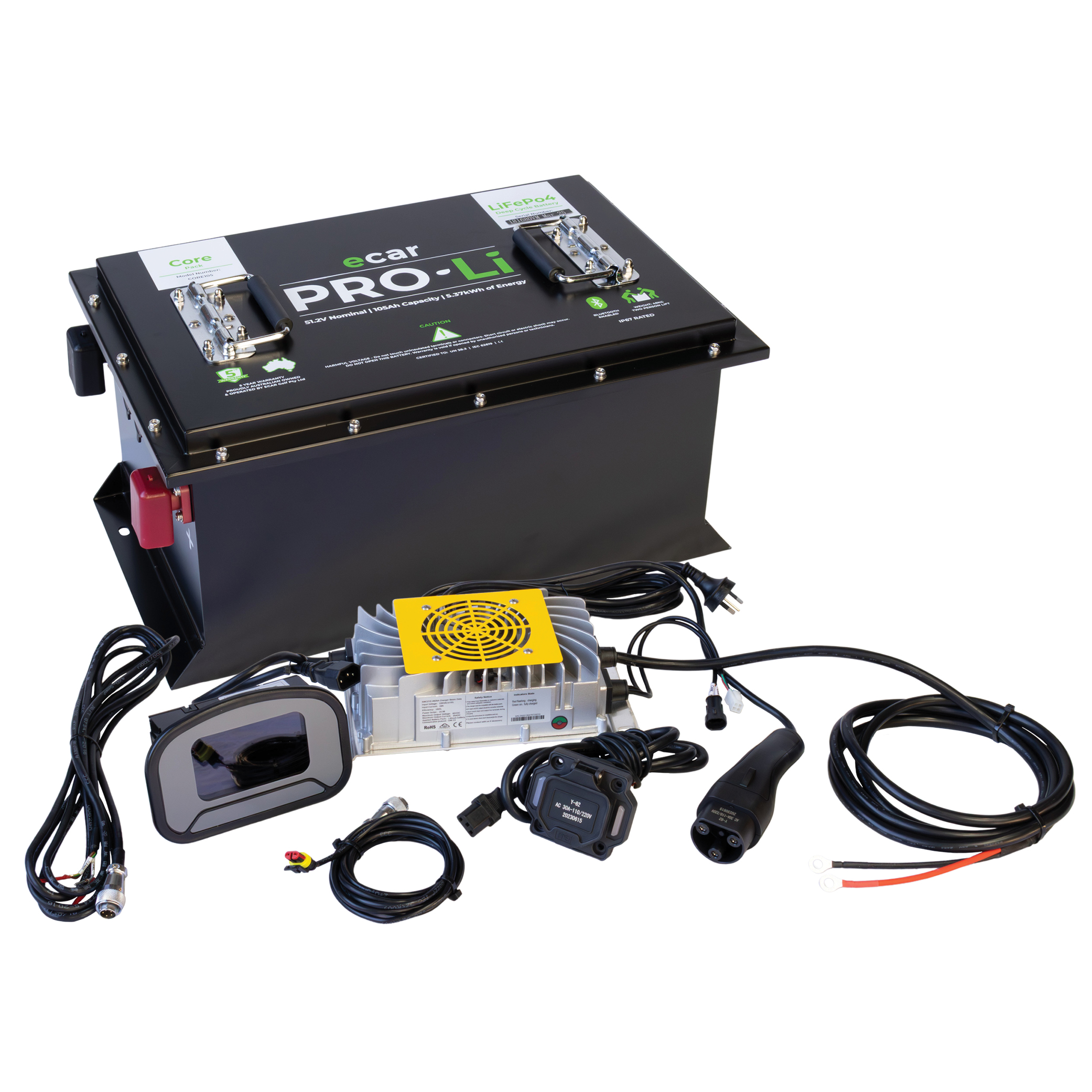

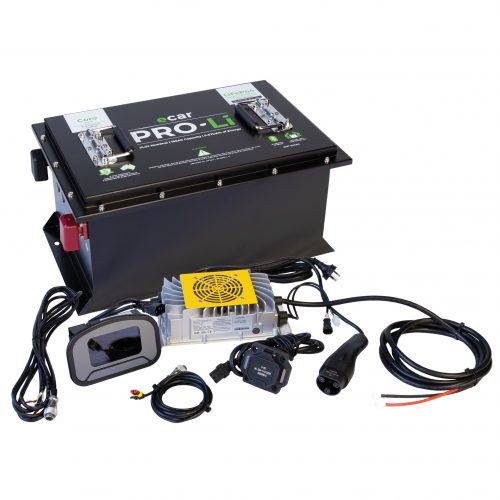

This PRO-Li Core 105Ah Lithium Battery Package includes the following items:

• Core 105Ah Battery – Encased in a 3-stage powder-coated steel IP67 certified box
• On-Board Battery Charger
• Charger Communication Cable
• Charger Receptacle
• Charger Gun
• Lithium programmed Dash – Pre-programmed to correctly display the lithium battery information
• Dash Communication Cable

Lithium Battery Care & Maintenance:

• If cleaning the battery installation with a hose, only use a gentle stream to ensure you don’t externally bridge water between the positive and negative terminals located on the side of the battery. In the event this accidentally does happen, the battery BMS will detect a short circuit and attempt to protect the installation from failure. An error will log inside the battery. Batteries can contain a lot of energy so always take caution when working in or around them.
• Routinely check the battery terminals are tight. Loose battery terminals can cause heat and lead to a failure of the system.
• As a minimum, charge the battery after every full day’s use. Please note, this will not reduce the lifespan of the battery. By not maintaining the battery’s state of charge to ideally above 50% (min. >30% SOC) you will potentially shorten the battery’s life span.

The PRO-Li Core 105Ah Battery Package Warranty:

Is this 48V Lithium Golf Cart Battery – PRO-Li Core 105Ah Battery Package for ECAR IKON not the exact battery replacement you are looking for?
Click here to see more Lithium Battery options
